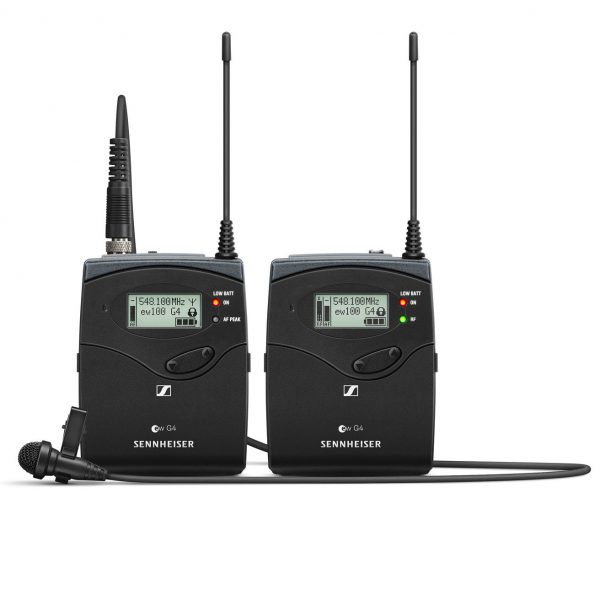

Micro Sennheiser EW 112P G4
- EK 100 G4 camera receiver
- SK 100 G4 bodypack transmitter
- ME 2 clip-on microphone (ew 112 P variants only)
- CA 2 camera adapter
- CL 1 3.5 mm jack cable
- CL 100 XLR to 3.5 mm jack adapter cable
| Frequency range | |
|
A1: 470 – 516 MHz
|
C: 734 – 776 MHz
|
|
A: 516 – 558 MHz
|
D: 780 – 822 MHz
|
|
AS: 520 – 558 MHz
|
E: 823 – 865 MHz
|
|
GB: 606 – 648 MHz
|
JB: 806 – 810 MHz
|
|
G: 566 – 608 MHz
|
K+: 925 – 937,5 MHz
|
|
B: 626 – 668 MHz
|
|
| EK 100 G4 | |
| Dimensions |
Approx. 82 x 64 x 24 mm
|
| Compander |
Sennheiser HDX
|
| THD, total harmonic distortion |
≤ 0.9 %
|
| Weight |
(incl. batteries) approx. 160 g
|
| Audio output |
3.5 mm jack socket: +12 dBu (mono, unbalanced)
|
| Signal-to-noise ratio |
≥ 110 dBA
|
| Switching bandwidth |
up to 42 MHz
|
| Peak deviation |
±48 kHz
|
| Nominal deviation |
±24 kHz
|
| Operating time |
Typically 8 h
|
| Modulation |
Wideband FM
|
| Power supply |
2 AA batteries, 1.5 V or BA 2015 accupack
|
| Current consumption |
at nominal voltage: typ. 180 mA
|
|
with receiver switched off: ≤ 25 µA
|
|
| Adjacent channel rejection |
≥ 65 dB
|
| Intermodulation attenuation |
≥ 65 dB
|
| Powering |
3 V battery / 2.4 V rechargeable battery
|
| Receiving frequency |
Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
|
| RF sensitivity |
< 1.6 μV for 52 dBA eff S/N
|
| Squelch |
low: 5 dBµV middle: 15 dBµV high: 25 dBμV
|
| Temperature Range |
-10 °C to +55 °C
|
| Receiver Principle |
Adaptive diversity
|
| Blocking |
≥ 70 dB
|
| SK 100 G4 | |
| Dimensions |
Approx. 82 x 64 x 24 mm
|
| Compander |
Sennheiser HDX
|
| THD, total harmonic distortion |
≤ 0.9 %
|
| Weight |
(incl. batteries) approx. 160 g
|
| Signal-to-noise ratio |
≥ 110 dBA
|
| RF output power |
Max. 30 mW
|
| Switching bandwidth |
up to 42 MHz
|
| Peak deviation |
±48 kHz
|
| Nominal deviation |
±24 kHz
|
| Operating time |
Typically 8 h
|
| Modulation |
Wideband FM
|
|
Wideband FM
|
|
| Power supply |
2 AA batteries, 1.5 V or BA 2015 accupack
|
| Current consumption |
at nominal voltage: typ. 180 mA
|
|
with transmitter switched off: ≤ 25 µA
|
|
| Input impedance |
40 kΩ, unbalanced / 1 MΩ
|
| Max. Input voltage |
3 Veff
|
| Powering |
3 V battery / 2.4 V rechargeable battery
|
| Transmission frequency |
Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
|
| AF frequency response |
Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
|
| Temperature Range |
-10 °C to +55 °C
|
| Frequency stability |
≤ ±15 ppm
|
| ME 2 | |
| Connector |
3.5 mm jack
|
| Frequency response |
50 to 18,000 Hz (ME 2-II)
|
| Max. sound pressure level |
130 dB
|
| Cable length |
approx. 1.60 m
|
| Transducer principle |
pre-polarized condensor microphone
|
| Pick-up pattern | |
|
omni-directional
|
|
| Sensitivity in free field, no load (1kHz) |
20 mV/Pa
|
| Equivalent noise level |
36 dB
|
